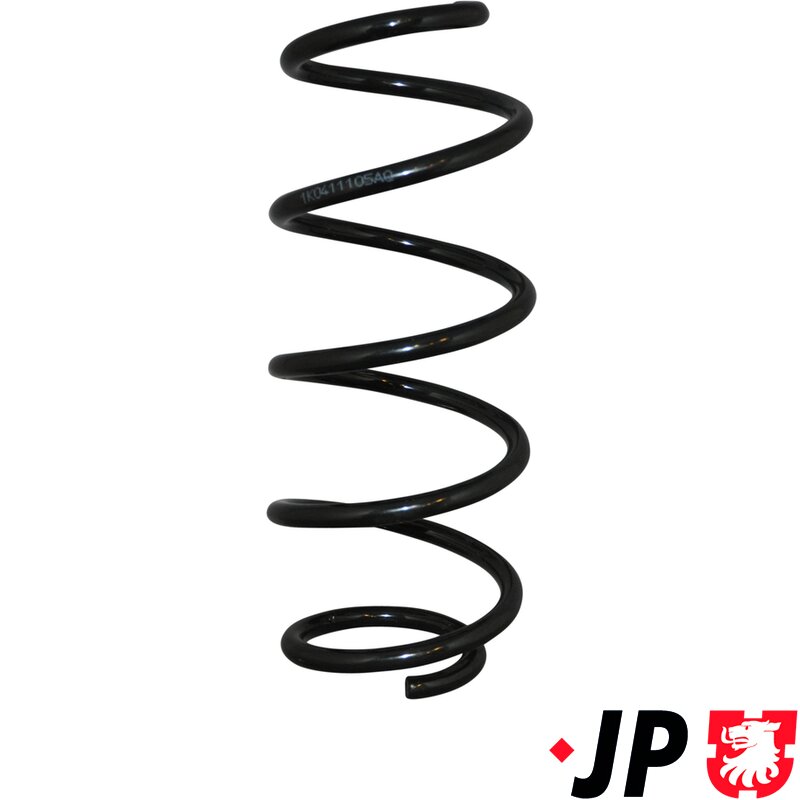

Suspension Spring

Name: Suspension Spring 1142204700 | ClassicJpParts
SKU: 1142204700
Price: 12.47 EUR
Availability: InStock

15,09 € 12,47 € IVA esclusa

220 pezzi disponibili

Consegna rapida in tutto il mondo

Pagamento sicuro

Componenti di altissima qualità

JP Group part number: 1142204700 Categoria: Sterzo Marchio: JP

Modello e anno esatti per la compatibilità

Applicazione	Motore	Anno
Skoda Octavia (1Z)	2,0-1,6D-1,8-1,9D	02/04-06/13
VW Beetle (5C)	2,0D	04/11-07/19
VW Eos	1,6-1,4	03/06-08/15
VW Golf Plus	1,6-1,4	12/04-08/14
VW Golf V	1,4-1,9D-2,0-1,6	10/03-07/09
VW Golf VI	1,4-1,6D-1,8-2,0D-1,6	10/08-05/16
VW Jetta III	1,6D-2,0-1,4	09/04-10/10
VW Jetta IV	1,4-2,0D-1,2-1,6D-2,0	04/10-04/18
Skoda Octavia (1Z)	2,0-1,6D-1,8-1,9D	02/04-06/13
VW Beetle (5C)	2,0D	04/11-07/19
VW Eos	1,4-1,6	03/06-08/15
VW Golf Plus	1,6-1,4	12/04-08/14
VW Golf V	1,9D-1,4-1,6-2,0	10/03-07/09
VW Golf VI	1,6-1,4-1,6D-1,8-2,0D	10/08-05/16
VW Jetta III	1,6D-1,4-2,0	09/04-10/10
VW Jetta IV	1,2-2,0-1,4-2,0D-1,6D	04/10-04/18
Skoda Octavia (1Z)	2,0-1,6D-1,8-1,9D	02/04-06/13
VW Beetle (5C)	2,0D	04/11-07/19
VW Eos	1,6-1,4	03/06-08/15
VW Golf Plus	1,4-1,6	12/04-08/14
VW Golf V	1,4-1,6-2,0-1,9D	10/03-07/09
VW Golf VI	1,6-1,4-2,0D-1,6D-1,8	10/08-05/16
VW Jetta III	1,6D-2,0-1,4	09/04-10/10
VW Jetta IV	1,2-1,4-2,0D-1,6D-2,0	04/10-04/18

Descrizione

The Suspension Spring (JP Group part number 1142204700) is a JP steering part.

Position: Front Axle
Length [mm]: 354
Outer Diameter [mm]: 139
Thickness [mm]: 11,75
Colour Coding: Orange;Blue
Spring Design: Coil spring with constant wire diameter
Net weight: 2.044 kg

Fits VW and Škoda — see the full vehicle list on this page.

OE / reference numbers: 993044, QCS8000, 1K0411105AQ, 4095079.

Spedizioni in tutto il mondo dal magazzino di ClassicJPParts nell'Unione Europea.

Ulteriori informazioni

Peso	2,2484 kg
Dimensioni	44 × 17,2 × 17,2 cm
Posizione di montaggio	Assale anteriore
Length [mm]	354
Diametro esterno [mm]	139
Spessore [mm]	11,75
Colour Coding	Orange;Blue
Spring Design	Coil spring with constant wire diameter
OE / N. rif.	993044, QCS8000, 1K0411105AQ, 4095079

Modelli che utilizzano questo componente

Compatibile con questi veicoli

Di seguito sono elencati i veicoli compatibili con questo ricambio: verifica il modello e l'anno di immatricolazione prima di effettuare l'ordine.

Produttore	Serie di modelli	Versione del modello	Anno	Cilindrata	Tipo di carburante	Fisico	BHP	Codice motore	Informazioni sull'applicazione
VW	Scarabeo	Beetle (5C)	04/11 - 07/16	2,0	Diesel	Hatchback	140	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio automatico Suspension for vehicles with standard suspension Transmission Type Automatic Transmission
VW	Scarabeo	Beetle (5C)	04/11 - 07/16	2,0	Diesel	Hatchback	140	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio automatico Suspension for vehicles with standard suspension Transmission Type Automatic Transmission
VW	Scarabeo	Beetle (5C)	07/14 - 09/18	2,0	Diesel	Hatchback	150	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Scarabeo	Beetle (5C)	07/14 - 09/18	2,0	Diesel	Hatchback	150	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Scarabeo	Beetle (5C)	06/14 - 09/18	2,0	Diesel	Cabrio	110	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Scarabeo	Beetle (5C)	06/14 - 09/18	2,0	Diesel	Cabrio	110	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Scarabeo	Beetle (5C)	04/12 - 07/16	2,0	Diesel	Cabrio	140	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio automatico Suspension for vehicles with standard suspension Transmission Type Automatic Transmission
VW	Scarabeo	Beetle (5C)	04/12 - 07/16	2,0	Diesel	Cabrio	140	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio automatico Suspension for vehicles with standard suspension Transmission Type Automatic Transmission
VW	Scarabeo	Beetle (5C)	06/14 - 09/18	2,0	Diesel	Hatchback	110	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio automatico Suspension for vehicles with standard suspension Transmission Type Automatic Transmission
VW	Scarabeo	Beetle (5C)	06/14 - 09/18	2,0	Diesel	Hatchback	110	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio automatico Suspension for vehicles with standard suspension Transmission Type Automatic Transmission
VW	Scarabeo	Beetle (5C)	09/14 - 09/18	2,0	Diesel	Cabrio	150	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Scarabeo	Beetle (5C)	09/14 - 09/18	2,0	Diesel	Cabrio	150	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Eos	Eos	06/06 - 05/08	1,6	Benzina	Cabrio	115	-	-
VW	Eos	Eos	11/07 - 08/15	1,4	Benzina	Cabrio	122	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Eos	Eos	05/08 - 08/15	1,4	Benzina	Cabrio	160	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf Plus	05/05 - 12/13	1,6	Benzina	Hatchback	102	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf Plus	05/06 - 06/08	1,4	Benzina	Hatchback	140	-	-
VW	Golf	Golf Plus	06/07 - 12/13	1,4	Benzina	Hatchback	122	-	-
VW	Golf	Golf Plus	05/06 - 06/08	1,4	Benzina	Hatchback	170	-	-
VW	Golf	Golf Plus	01/05 - 11/06	1,4	Benzina	Hatchback	75	-	Suspension for vehicles with standard suspension for model code 521 Suspension for vehicles with standard suspension for model code 521
VW	Golf	Golf Plus	01/05 - 11/06	1,4	Benzina	Hatchback	75	-	Suspension for vehicles with standard suspension for model code 521 Suspension for vehicles with standard suspension for model code 521
VW	Golf	Golf Plus	07/05 - 11/06	1,4	Benzina	Hatchback	90	-	-
VW	Golf	Golf Plus	06/08 - 12/13	1,4	Benzina	Hatchback	160	-	-
VW	Golf	Golf Plus	05/06 - 12/13	1,4	Benzina	Hatchback	80	-	-
VW	Golf	Golf V	01/04 - 11/08	2,0	Benzina	Hatchback	150	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf V	10/03 - 07/06	1,4	Benzina	Hatchback	90	-	Suspension for vehicles with bad road version Suspension for vehicles with bad road version
VW	Golf	Golf V	05/06 - 11/08	1,4	Benzina	Hatchback	140	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf V	05/07 - 11/08	1,4	Benzina	Hatchback	122	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf V	06/07 - 07/09	1,4	Benzina	Patrimonio immobiliare	170	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf V	05/04 - 11/08	1,9	Diesel	Hatchback	90	-	-
VW	Golf	Golf V	10/03 - 05/06	1,4	Benzina	Hatchback	75	-	Suspension for vehicles with bad road version Suspension for vehicles with bad road version
VW	Golf	Golf V	11/05 - 11/08	1,4	Benzina	Hatchback	170	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf V	08/04 - 11/08	2,0	Benzina	Hatchback	150	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf V	05/06 - 11/08	1,4	Benzina	Hatchback	80	-	Suspension for vehicles with bad road version Suspension for vehicles with bad road version
VW	Golf	Golf V	07/08 - 07/09	1,4	Benzina	Patrimonio immobiliare	160	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf V	10/03 - 11/08	1,9	Diesel	Hatchback	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf V	10/03 - 07/08	1,6	Benzina	Hatchback	115	-	Suspension for vehicles with bad road version Suspension for vehicles with bad road version
VW	Golf	Golf V	01/04 - 11/08	1,6	Benzina	Hatchback	102	-	Suspension for vehicles with bad road version Suspension for vehicles with bad road version
VW	Golf	Golf V	06/07 - 07/09	1,4	Benzina	Patrimonio immobiliare	140	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf V	06/07 - 07/09	1,9	Diesel	Patrimonio immobiliare	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf VI	11/11 - 05/16	1,4	Benzina	Cabrio	122	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Golf	Golf VI	11/11 - 05/16	1,4	Benzina	Cabrio	122	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Golf	Golf VI	10/08 - 11/12	1,6	Benzina	Hatchback	102	-	Suspension for vehicles with bad road version Tipo di cambio: cambio manuale Suspension for vehicles with bad road version Transmission Type Manual Transmission
VW	Golf	Golf VI	10/08 - 11/12	1,6	Benzina	Hatchback	102	-	Suspension for vehicles with bad road version Tipo di cambio: cambio manuale Suspension for vehicles with bad road version Transmission Type Manual Transmission
VW	Golf	Golf VI	10/08 - 11/12	1,4	Benzina	Hatchback	122	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf VI	10/08 - 11/12	2,0	Diesel	Hatchback	110	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf VI	07/09 - 07/13	1,6	Benzina	Patrimonio immobiliare	102	-	Suspension for vehicles with bad road version Tipo di cambio: cambio manuale Suspension for vehicles with bad road version Transmission Type Manual Transmission
VW	Golf	Golf VI	07/09 - 07/13	1,6	Benzina	Patrimonio immobiliare	102	-	Suspension for vehicles with bad road version Tipo di cambio: cambio manuale Suspension for vehicles with bad road version Transmission Type Manual Transmission
VW	Golf	Golf VI	07/09 - 07/13	1,4	Benzina	Patrimonio immobiliare	160	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf VI	10/08 - 11/12	1,4	Benzina	Hatchback	80	-	-
VW	Golf	Golf VI	06/09 - 01/11	1,8	Benzina	Hatchback	160	-	-
VW	Golf	Golf VI	03/09 - 11/12	1,6	Benzina/Gas di petrolio liquefatto (GPL)	Hatchback	102	-	Suspension for vehicles with bad road version Number of Doors 5 Suspension for vehicles with bad road version Number of Doors 5
VW	Golf	Golf VI	03/09 - 11/12	1,6	Benzina/Gas di petrolio liquefatto (GPL)	Hatchback	102	-	Suspension for vehicles with bad road version Number of Doors 5 Suspension for vehicles with bad road version Number of Doors 5
VW	Golf	Golf VI	07/09 - 07/13	1,4	Benzina	Patrimonio immobiliare	80	-	Suspension for vehicles with bad road version Suspension for vehicles with bad road version
VW	Golf	Golf VI	07/09 - 07/13	1,4	Benzina	Patrimonio immobiliare	122	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf VI	02/09 - 11/12	1,6	Diesel	Hatchback	90	-	-
VW	Golf	Golf VI	10/08 - 11/12	1,4	Benzina	Hatchback	160	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Golf	Golf VI	02/09 - 11/12	1,6	Diesel	Hatchback	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf VI	07/09 - 07/13	1,6	Diesel	Patrimonio immobiliare	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Golf	Golf VI	12/09 - 07/13	1,6	Diesel	Patrimonio immobiliare	90	-	-
VW	Golf	Golf VI	01/10 - 07/13	2,0	Diesel	Patrimonio immobiliare	110	-	-
VW	Golf	Golf VI	11/13 - 05/16	1,4	Benzina	Cabrio	125	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Golf	Golf VI	11/13 - 05/16	1,4	Benzina	Cabrio	125	-	Suspension for vehicles with standard suspension Tipo di cambio: cambio manuale Suspension for vehicles with standard suspension Transmission Type Manual Transmission
VW	Jetta	Jetta III	07/08 - 10/10	1,4	Benzina	Saloon	160	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Jetta	Jetta III	06/09 - 10/10	1,6	Diesel	Saloon	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Jetta	Jetta III	07/06 - 10/10	1,4	Benzina	Saloon	170	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Jetta	Jetta III	05/07 - 10/10	1,4	Benzina	Saloon	122	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Jetta	Jetta III	08/05 - 10/10	2,0	Benzina	Saloon	150	-	Tipo di cambio: cambio automatico Tipo di cambio: cambio automatico
VW	Jetta	Jetta III	07/06 - 10/10	1,4	Benzina	Saloon	140	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
VW	Jetta	Jetta IV	07/10 - 12/17	2,0	Diesel	Saloon	140	-	-
VW	Jetta	Jetta IV	10/10 - 12/17	2,0	Diesel	Saloon	110	-	Suspension for vehicles without heavy duty suspension Suspension for vehicles without heavy duty suspension
VW	Jetta	Jetta IV	04/10 - 07/15	1,6	Diesel	Saloon	105	-	Suspension for vehicles without heavy duty suspension Vehicle Equipment Line/Trim Level GT Suspension for vehicles without heavy duty suspension Vehicle Equipment Line/Trim Level GT
VW	Jetta	Jetta IV	04/10 - 07/15	1,6	Diesel	Saloon	105	-	Suspension for vehicles without heavy duty suspension Vehicle Equipment Line/Trim Level GT Suspension for vehicles without heavy duty suspension Vehicle Equipment Line/Trim Level GT
VW	Jetta	Jetta IV	10/10 - 12/17	1,2	Benzina	Saloon	105	-	Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension
VW	Jetta	Jetta IV	10/10 - 12/17	1,2	Benzina	Saloon	105	-	Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension
VW	Jetta	Jetta IV	12/12 - 12/17	2,0	Benzina	Saloon	211	-	Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension
VW	Jetta	Jetta IV	12/12 - 12/17	2,0	Benzina	Saloon	211	-	Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension
VW	Jetta	Jetta IV	12/10 - 07/14	2,0	Benzina	Saloon	200	-	Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension
VW	Jetta	Jetta IV	12/10 - 07/14	2,0	Benzina	Saloon	200	-	Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension Suspension for vehicles without sports suspension Suspension for vehicles without heavy duty suspension
VW	Jetta	Jetta IV	04/11 - 12/17	1,4	Benzina/Elettrico	Saloon	170	-	Suspension for vehicles without sports suspension Suspension for vehicles without sports suspension
VW	Jetta	Jetta IV	07/14 - 12/17	2,0	Diesel	Saloon	150	-	Suspension for vehicles without heavy duty suspension Suspension for vehicles without heavy duty suspension
Škoda	Ottavia	Octavia (1Z)	03/09 - 06/13	1,8	Benzina	Patrimonio immobiliare	152	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	03/09 - 06/13	1,8	Benzina	Hatchback	152	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	06/07 - 04/13	1,8	Benzina	Patrimonio immobiliare	160	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	11/04 - 04/09	2,0	Benzina	Patrimonio immobiliare	150	-	Suspension for vehicles with standard suspension Separazione dei blocchi Vehicle Equipment for vehicles with trailer hitch Suspension for vehicles with standard suspension Block Separation Vehicle Equipment for vehicles with trailer hitch
Škoda	Ottavia	Octavia (1Z)	11/04 - 04/09	2,0	Benzina	Patrimonio immobiliare	150	-	Suspension for vehicles with standard suspension Separazione dei blocchi Vehicle Equipment for vehicles with trailer hitch Suspension for vehicles with standard suspension Block Separation Vehicle Equipment for vehicles with trailer hitch
Škoda	Ottavia	Octavia (1Z)	11/04 - 04/09	2,0	Benzina	Patrimonio immobiliare	150	-	Suspension for vehicles with standard suspension Separazione dei blocchi Vehicle Equipment for vehicles with trailer hitch Suspension for vehicles with standard suspension Block Separation Vehicle Equipment for vehicles with trailer hitch
Škoda	Ottavia	Octavia (1Z)	11/04 - 04/09	2,0	Benzina	Patrimonio immobiliare	150	-	Suspension for vehicles with standard suspension Separazione dei blocchi Vehicle Equipment for vehicles with trailer hitch Suspension for vehicles with standard suspension Block Separation Vehicle Equipment for vehicles with trailer hitch
Škoda	Ottavia	Octavia (1Z)	06/04 - 12/10	1,9	Diesel	Hatchback	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	09/04 - 12/10	1,9	Diesel	Patrimonio immobiliare	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	11/04 - 10/08	2,0	Benzina	Hatchback	150	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	11/04 - 10/08	2,0	Benzina	Patrimonio immobiliare	150	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	06/07 - 04/13	1,8	Benzina	Hatchback	160	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	06/09 - 04/13	1,6	Diesel	Hatchback	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
Škoda	Ottavia	Octavia (1Z)	06/09 - 04/13	1,6	Diesel	Patrimonio immobiliare	105	-	Tipo di cambio: cambio manuale Tipo di cambio: cambio manuale
