Brake Caliper
Brake Caliper
Brake Caliper

Brake Caliper

41,30 € 34,13 € excl. VAT

6 pieces available

Fast worldwide delivery
Secure checkout
Premium quality parts
VisaMastercardAmerican ExpressPayPalApple PayGoogle PayKlarnaVenmoiDEAL
JP Group part number: 3561901380 Category: Brand:

Description

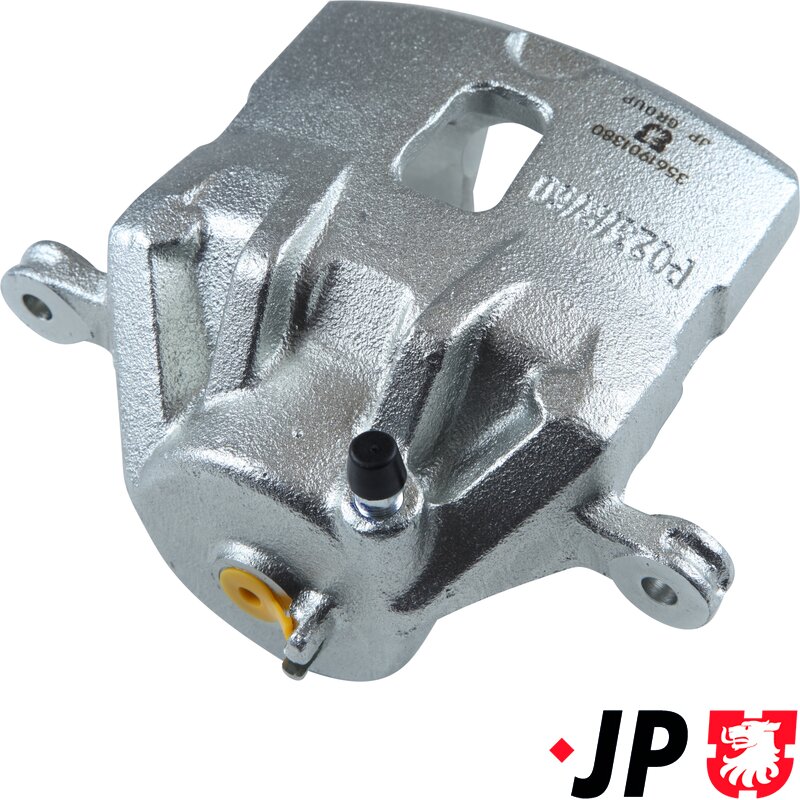

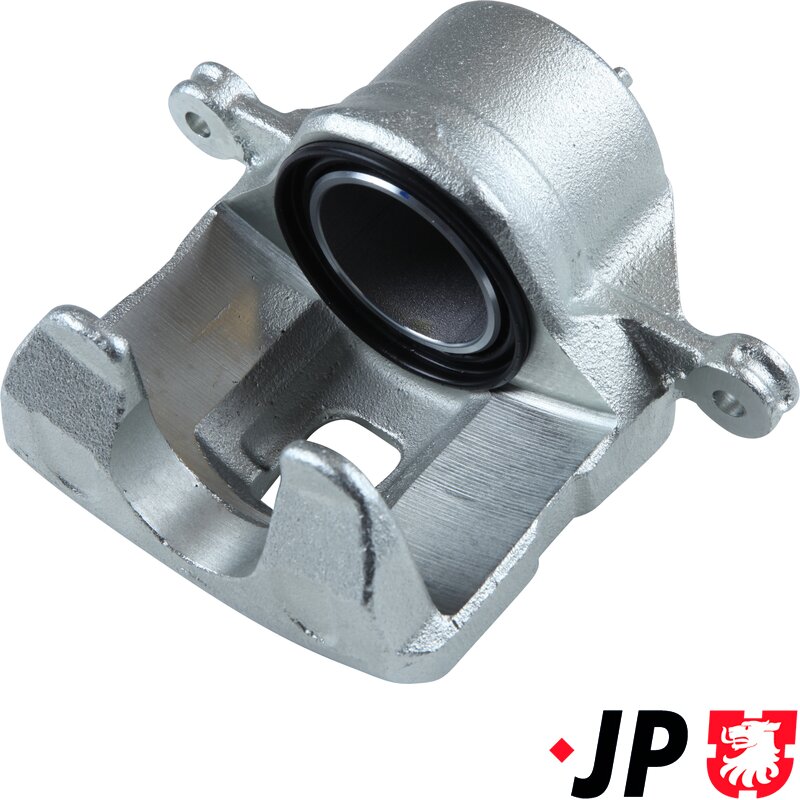

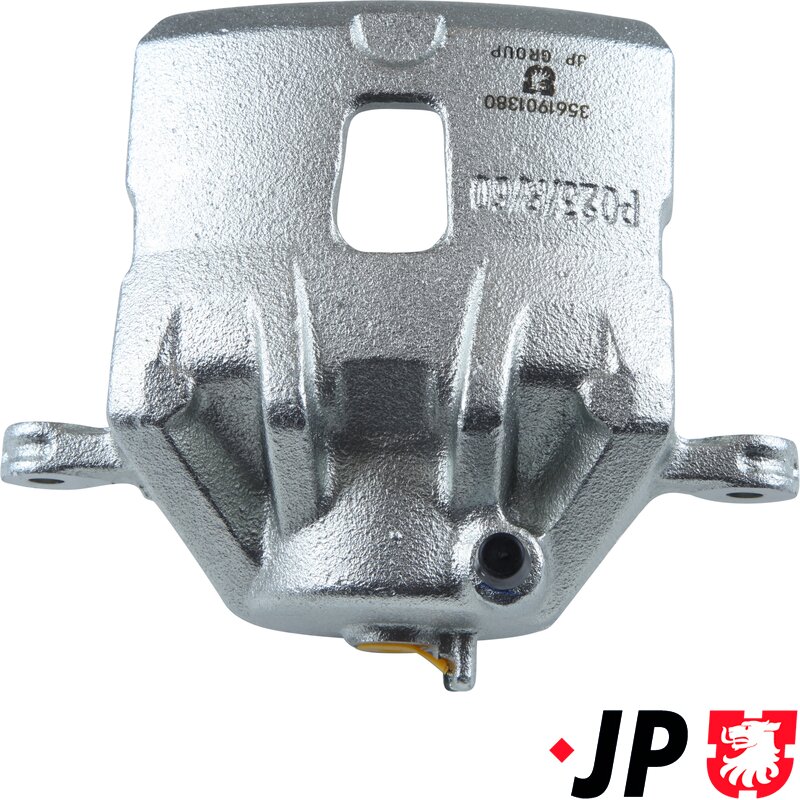

The Brake Caliper (JP Group part number 3561901380) is a JP brake part.

Position: Front Axle Right
Manufacturer Restriction: MANDO
Brake Caliper Piston Diameter [mm]: 60
Brake Caliper Type: Brake Caliper (1 piston);Floating Caliper
For brake disc diameter [mm]: 280
For brake disc thickness [mm]: 26
Brake Disc Type: Vented
Net weight: 3.5 kg

Fits Hyundai and KIA — see the full vehicle list on this page.

OE / reference numbers: 8AC 355 393-621, 8AC355393621, 0 986 135 468, 0986135468, 38171100, 592797, RX609860A0, F 30 093, F30093, 6250406, 8170 343713, 8170343713, 343713, 213454, BC1174R, BC-1174R, BHS1382E, 581301F000, 581302E000, 581302E500, 581902EA00, 581902EA10, JBC0574, 726122, DC83713, 831650, 83-1650, ADG048504, PBRC1013, 0590333SX, 05-90333-SX.

We offer business customers discounts on store prices. Please contact us.

Ships worldwide from ClassicJPParts European Union warehouse.

Additional information

Product specifications and additional details are listed below.

Weight 3,85 kg
Dimensions 24 × 18 × 14,5 cm
Fitting Position

Front Axle Right
Manufacturer Restriction

MANDO
Brake Caliper Piston Diameter [mm]

60
Brake Caliper Type

Brake Caliper (1 piston);Floating Caliper
for brake disc diameter [mm]

280
for brake disc thickness [mm]

26
Brake Disc Type

Vented
OE / Ref. No.

8AC 355 393-621, 8AC355393621, 0 986 135 468, 0986135468, 38171100, 592797, RX609860A0, F 30 093, F30093, 6250406, 8170 343713, 8170343713, 343713, 213454, BC1174R, BC-1174R, BHS1382E, 581301F000, 581302E000, 581302E500, 581902EA00, 581902EA10, JBC0574, 726122, DC83713

Models that use this part

Fits these vehicles

Compatible vehicles for this part are listed below — check your model and year before ordering.

ManufacturerModel seriesModel VersionYearEngine sizeFuel typeBody typeBHPEngine codeApplication info
HyundaiTucsonTucson I2004 - 20102,0PetrolSUV141--
HyundaiTucsonTucson I2004 - 20102,0DieselSUV113--
HyundaiTucsonTucson I2006 - 20102,0DieselSUV140--
HyundaiTucsonTucson I2006 - 20102,0DieselSUV136--
HyundaiTucsonTucson I2007 - 20102,0DieselSUV120--
HyundaiTucsonTucson I2004 - 20272,0PetrolSUV141--
HyundaiTucsonTucson I2004 - 20102,7PetrolSUV175--
HyundaiTucsonTucson I2009 - 20102,0DieselSUV150--
HyundaiTucsonTucson I2004 - 20092,7PetrolSUV175--
HyundaiTucsonTucson I2005 - 20072,0PetrolSUV143-
String Construction Year to 200711
Construction Year to 200711
String Construction Year to 200711 Construction Year to 200711
HyundaiTucsonTucson I2004 - 20102,0Petrol/Liquified Petroleum Gas (LPG)SUV141--
HyundaiTucsonTucson I2004 - 20102,0PetrolSUV Van141--
HyundaiTucsonTucson I2006 - 20072,0DieselSUV Van140-
String Construction Year to 200712
Construction Year to 200712
String Construction Year to 200712 Construction Year to 200712
KIASportageSportage II2006 - 20102,0DieselSUV136--
KIASportageSportage II2004 - 20272,0PetrolSUV141--
KIASportageSportage II2004 - 20272,7PetrolSUV175--
KIASportageSportage II2004 - 20272,0DieselSUV113--
KIASportageSportage II2005 - 20272,0DieselSUV113--
KIASportageSportage II2008 - 20102,0DieselSUV150--
KIASportageSportage II2006 - 20272,0DieselSUV140--
KIASportageSportage II2007 - 20272,0DieselSUV150--
KIASportageSportage II2009 - 20102,0Petrol/Liquified Petroleum Gas (LPG)SUV137--
KIASportageSportage II2008 - 20102,0DieselSUV Van150--
