Brake Disc
Brake Disc

Brake Disc

22,06 € 18,23 € excl. VAT

42 pieces available

Fast worldwide delivery
Secure checkout
Premium quality parts
VisaMastercardAmerican ExpressPayPalApple PayGoogle PayKlarnaVenmoiDEAL
JP Group part number: 4863102900 Category: Brand:

Description

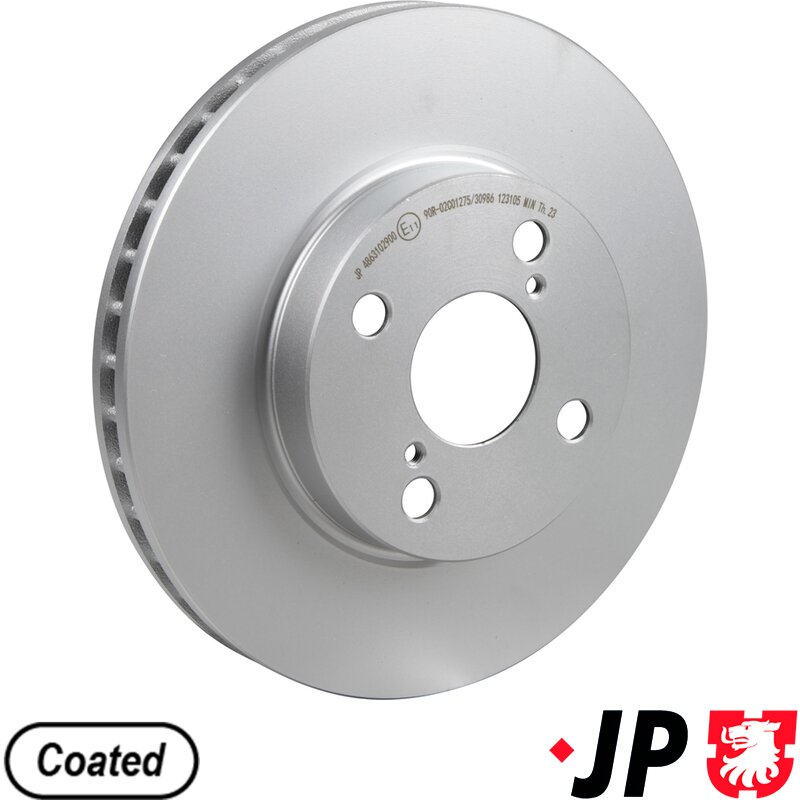

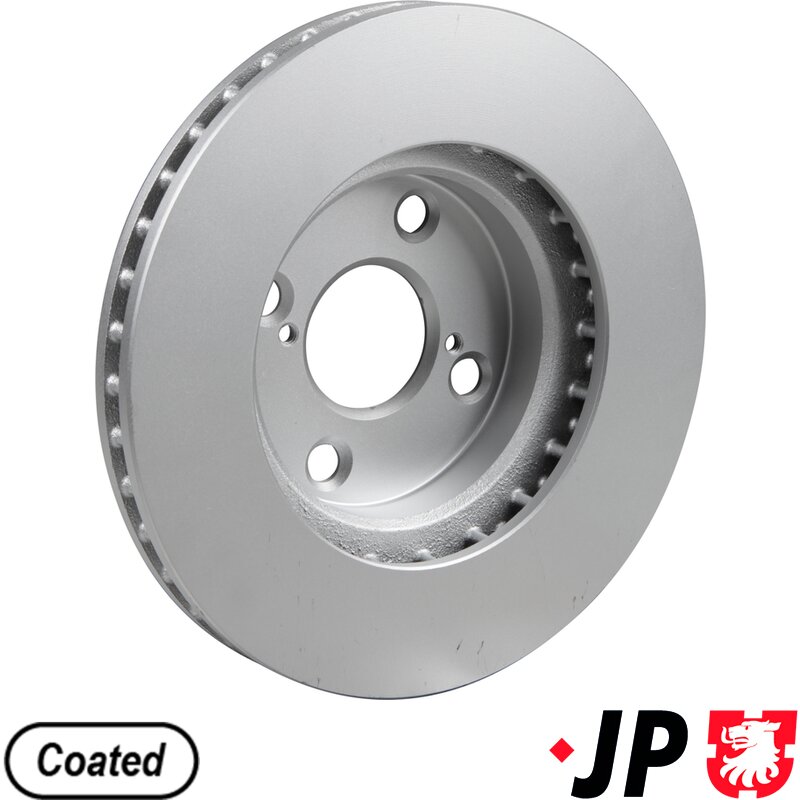

The Brake Disc (JP Group part number 4863102900) is a JP brake part.

Position: Front Axle
Surface: Coated
Outer Diameter [mm]: 255
Number of Holes: 4
Brake Disc Type: Vented
Brake Disc Thickness [mm]: 25
Net weight: 5.2 kg

Fits Toyota and Lifan — see the full vehicle list on this page.

OE / reference numbers: 8DD355110431, 24012501551, 09982411, 590257520, 812013169C, 4351202060, 4351202070, 4351202071, 4351202090, 4351202100, 4351212620, 4351212621, 4351213030, 4351247020, 43512YZZAF, 314582, DF4403, AND6480.

Ships worldwide from ClassicJPParts European Union warehouse.

Additional information

Weight 5,72 kg
Dimensions 29,4 × 7,8 × 30,6 cm
Fitting Position

Front Axle
Surface

Coated
Outer Diameter [mm]

255
Number of Holes

4
Brake Disc Type

Vented
Brake Disc Thickness [mm]

25
OE / Ref. No.

8DD355110431, 24012501551, 09982411, 590257520, 812013169C, 4351202060, 4351202070, 4351202071, 4351202090, 4351202100, 4351212620, 4351212621, 4351213030, 4351247020, 43512YZZAF, 314582, DF4403, AND6480

Models that use this part

Fits these vehicles

Compatible vehicles for this part are listed below — check your model and year before ordering.

ManufacturerModel seriesModel VersionYearEngine sizeFuel typeBody typeBHPEngine codeApplication info
ToyotaCorollaCorolla (E12)2002 - 20061,6PetrolHatchback110--
ToyotaCorollaCorolla (E12)2001 - 20061,8PetrolSaloon136-
Array 055
not for country specific design China (Taiwan)
Array 055 not for country specific design China (Taiwan)
ToyotaCorollaCorolla (E12)2001 - 20071,8PetrolEstate136-
Array 055
not for country specific design China (Taiwan)
Array 055 not for country specific design China (Taiwan)
ToyotaCorollaCorolla (E12)2002 - 20071,6PetrolEstate110--
ToyotaCorollaCorolla (E12)2001 - 20081,6PetrolSaloon110-
Array 055
not for country specific design China (Taiwan)
Array 055 not for country specific design China (Taiwan)
ToyotaCorollaCorolla (E12)2001 - 20041,6PetrolMPV110--
ToyotaCorollaCorolla (E12)2001 - 20051,8PetrolSaloon131-
Array 055
not for country specific design China (Taiwan)
Array 055 not for country specific design China (Taiwan)
ToyotaCorollaCorolla (E12)2002 - 20041,8PetrolSaloon125-
Array 055
not for country specific design China (Taiwan)
Array 055 not for country specific design China (Taiwan)
ToyotaCorollaCorolla (E12)2002 - 20051,8PetrolSaloon132-
Array 055
not for country specific design China (Taiwan)
Array 055 not for country specific design China (Taiwan)
ToyotaCorollaCorolla (E15)2006 - 20081,8PetrolSaloon137-
Array 200809
Construction Year to 200809
Array 200809 Construction Year to 200809
ToyotaCorollaCorolla (E15)2007 - 20081,8PetrolSaloon132-
Array 200809
Construction Year to 200809
Array 200809 Construction Year to 200809
ToyotaPriusPrius (W1)2000 - 20031,5Petrol/ElectricSaloon116--
ToyotaPriusPrius (W1)1997 - 20001,5Petrol/ElectricSaloon58--
